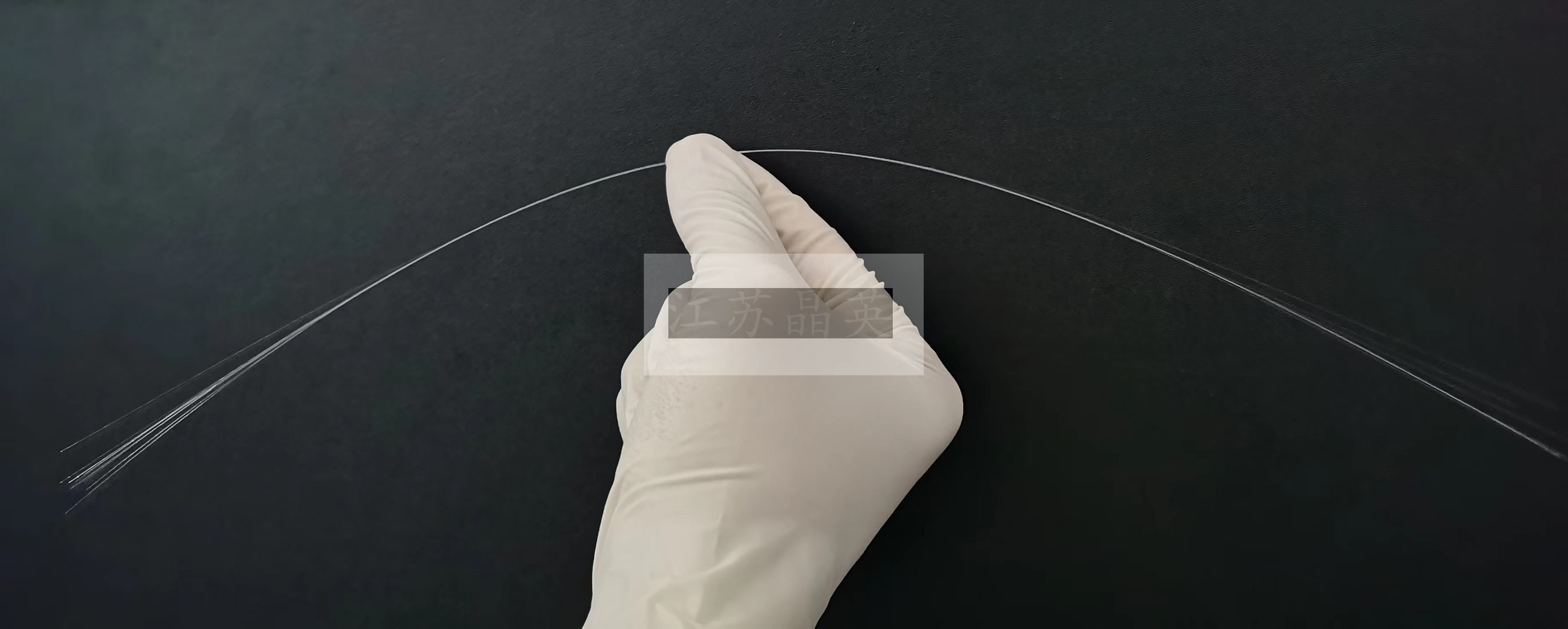

Sapphire is a high-strength, corrosion-resistant material with a melting point of 2072°C and a transmission band of 0.15-7.5 μm. Our company can provide sapphire single-crystal optical fibers prepared by the LHPG method, with diameters ranging from 20 to 1000 microns, meeting application requirements in the fields of energy transmission, spectroscopy, and sensing.
Product parameters：
| Fiber orientation | C-axis (or A-axis and M-axis) |
| Melting point | 2072℃ |
| Tensile strength | > 3000 MPa @φ 100 μm |
| Transmittance | >80%（400-3000 nm） |
| Attenuation | ~1.0 dB @ 1550 nm |
Product specification：
| Diameter | Max length |
| 大于800 μm | Email us |
| 250~800 μm | 1 m |
| 200 μm | 3.5 m |
| 150 μm | 15 m |
| 50-100 μm | 30 m |
| 20-40 μm | 3 m |
